Accesorios Topográficos

DIGITAL PLANIMETER -Polar type-

?Features
1. Measurement by 6-digit pulse count
2. Easy conversion function of unit and scale
3. Hold memory function
4. Automatic shifting of unit to upper unit
5. Average value measurement

SPECIFICATIONS  Polar type
Code No. 082318 082319
Model KP-80N KP-82N
Function Computing Single
Display Liquid Crystal, 8-digit Figures
Symbols

Batt-E, Scale, Memo,
Hold, cm2, m2, km2,
in2, ft2, acre, etc.

Batt-E, Memo, Hold,
cm2, in2, etc.
Converting Function Unit and Scale value Unit (in2, cm2)
Accumulated
Measuring value
Maximum 10m2 (scale 1:1)
Measuring range

Maximum, with the pole put outside the pattern: 300?mm
Maximum, with the pole put inside the pattern: 800?mm

Accuracy within +/- 0.2% (within +/- 2/1,000pulses)
Power 1. Built-in rechargeable NiCd battery
2. AC Adapter 100V~240V (Auto Power-off provided)
Operating hour Approx. 30 hours
Weight 780g
Accessories Supplied AC adapter & Plastic case

IBERGLASS MEASURING TAPE MYG series

?Features
1. Fiberglass Coated
2. ABS Open Real
3. Calibrations on both sides of tape
4. Washable
5. Elastomeric Coating Grip

SPECIFICATIONS
Code No. Model Weight Tape Length Tape Width Tape Thickness Tape Tension
218435 MYG-30 700g 30m 13mm 0.55mm 20N/20°C
218436 MYG-50 930g 50m 13mm 0.55mm 20N/20°C

NYLON COATED STEEL MEASURING TAPE MYS series



?Features
1.Fiberglass Coated
2.ABS Open Real
3.1mm graduation
4.Swing damper absorb shock when winding
5.3X quick winding

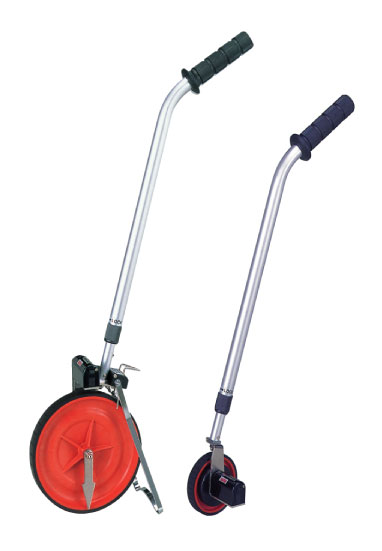

MEASURING WHEELS MG series


SPECIFICATIONS
Code No. Model Weight Tape Length Tape Width Tape Thickness Tape Tension
218433 MYS-30 900g 30m 10mm 0.46mm 50N/20°C
218434 MYS-30 1,200g 50m 10mm 0.46mm 50N/20°C

Suitable for

  • ??_?????

?Features
1. Easy to adjust the length by TWIST LOCK SYSTEM
2. Keeping a measuring result by wheel stopper (MG-20S)
3. Soft grip fit to hand
4. Big counter display

SPECIFICATIONS
Code No. Model Measuring Range Full Extended Full Closed Wheel Dia. Weight
210375 MG-10S 1cm - 1km 985mm 692mm 10cm 0.7kg
210376 MG-20S 10cm - 10km 1,090mm 795mm 20cm 1.4kg

LASER DISTANCE METER LD series

?Features
1. Pin tail helps measuring from corner.
2. Rubber paint helps to grip the distance meter.
3. Easy to see display with backlight.

SPECIFICATIONS
Code No. 218840 218841
Model LD-40 LD-70
Measuring range 0.05 to 40m 0.05 to 70m
Resolution 0.001m
Accuracy ±1.5mm
Measuring speed 0.5 sec.
Laser type 650nm, Class2, <1mW
Beam size 25mm at 30m
Battery AA batteries x 2
Battery life 10,000 measures
Dimension 110 x 45 x 30mm
Operating temperature -5 degreeC to 40 degreeC
Storage temperature -20 degreeC to 60 degreeC

Auto-Power off
-Laser
-Device


30 sec.
180 sec.

BRUNTON TYPE COMPASS

?Features
1. Precision compass - Brunton Type Compass
2. Specialized instrument used widely in surveying field
3. With leatherette case

SPECIFICATIONS
Code No. Model Horizontal angles Vertical angles Accessory
102531 BTC 0 - 360° 0 - 90° Leatherette Case
